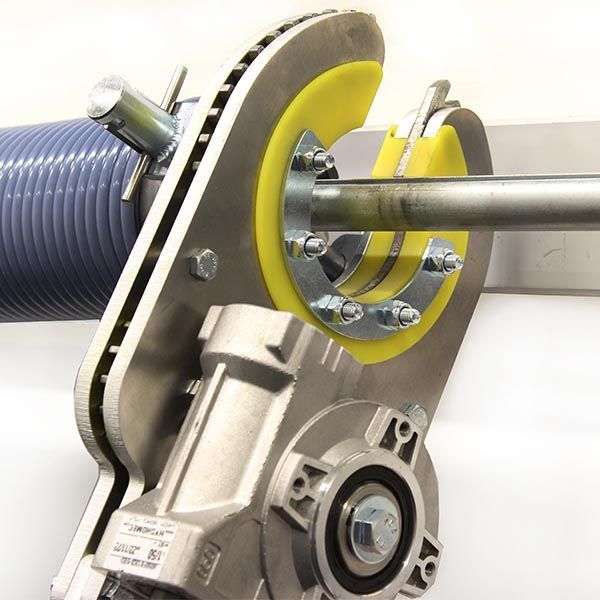

A completely renewed and adapted tool for the tensioning of torsion springs
- No tension bars necessary anymore
- For all types and dimensions of torsion springs
- For all types of shafts and up to 300Nm
- Minimalizing the physical strain for installers
- With ergonomics approved quality label
A completely renewed and adapted tool for the tensioning of torsion springs
- No tension bars necessary anymore
- For all types and dimensions of torsion springs
- For all types of shafts and up to 300Nm
- Minimalizing the physical strain for installers
- With ergonomics approved quality label
Find your TorQtool
Product comparison
Spring tensioning requires torque, and depending on your needs, we have 3 variants; TorQTool Mini, Medium, and 2. Find out what the differences are below.
Maximum torque
50 N/m
160 N/m
300 N/m
Spring diameters
2"
2.6"
3.7"
2.6"
6.0"
3.7"
Shaft diameter
1"
1"
1" 1.25"
HEX 32
Plug size (brands)
3.3"
FlexiForce
Canimex
Doco
3.7"
FlexiForce
Canimex
Doco
ConDoor
4.9"
Canimex
Doco
Nassau
Hörmann
Assa Ratch (adapter)
Wall - center
2.1"
3.4"
4.4"
Weight (the tool)
5.3lbs
11.9lbs
(medium safety grabber 3lbs)
18.7lbs
The TorQtool collection
TorQtool Mini
Sale price$999.99

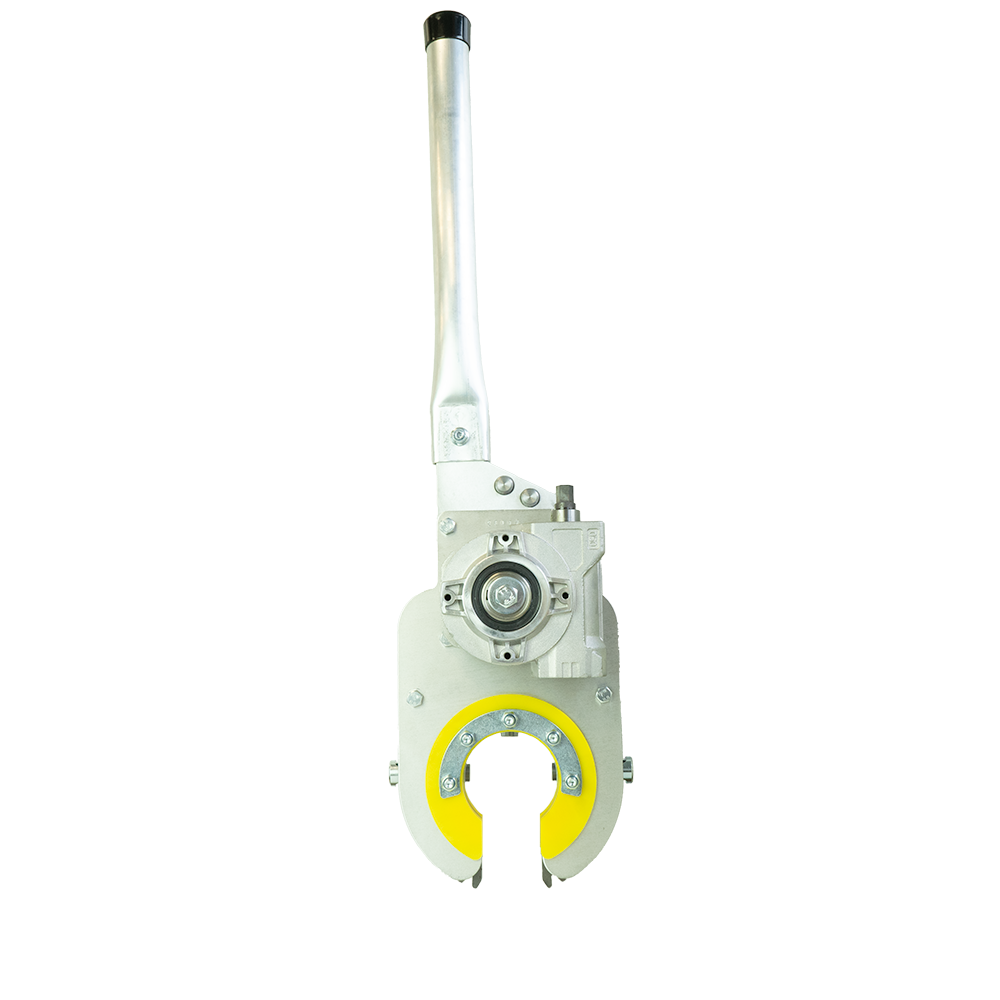

TorQtool 2
Sale price$1,599.99

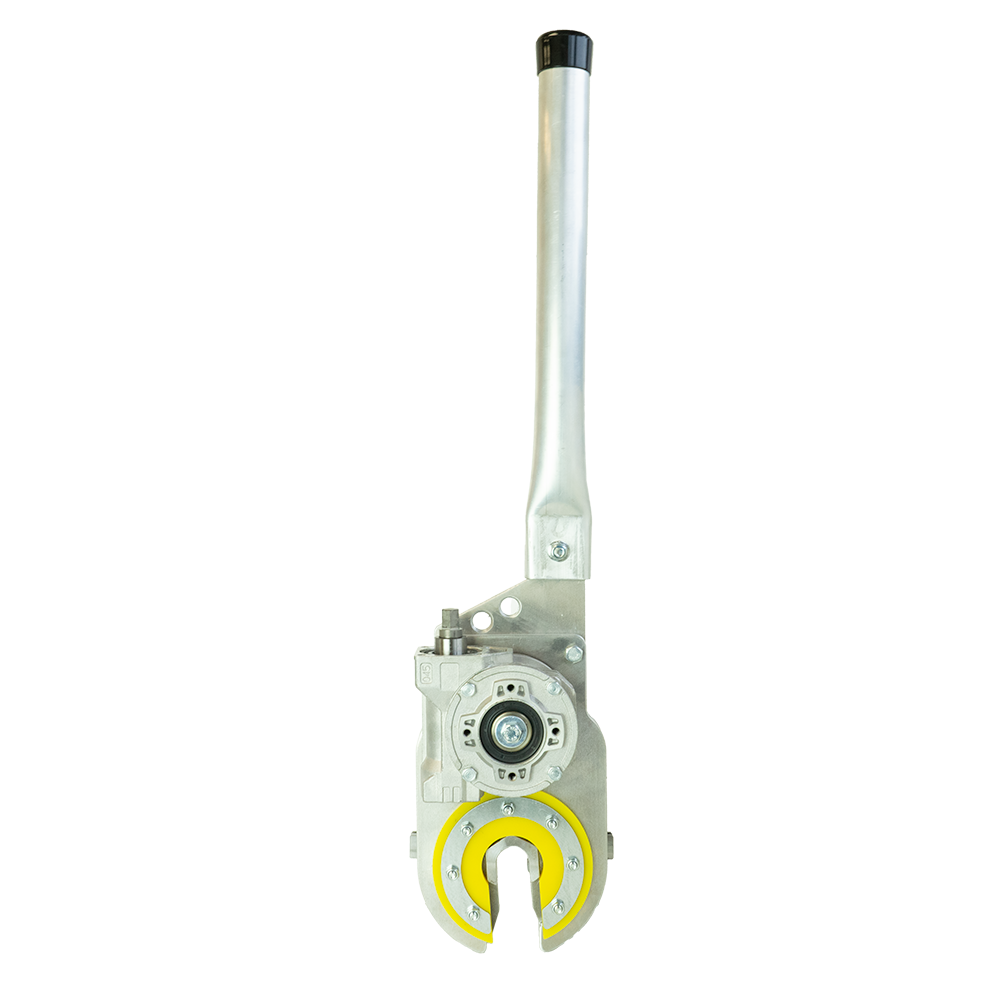

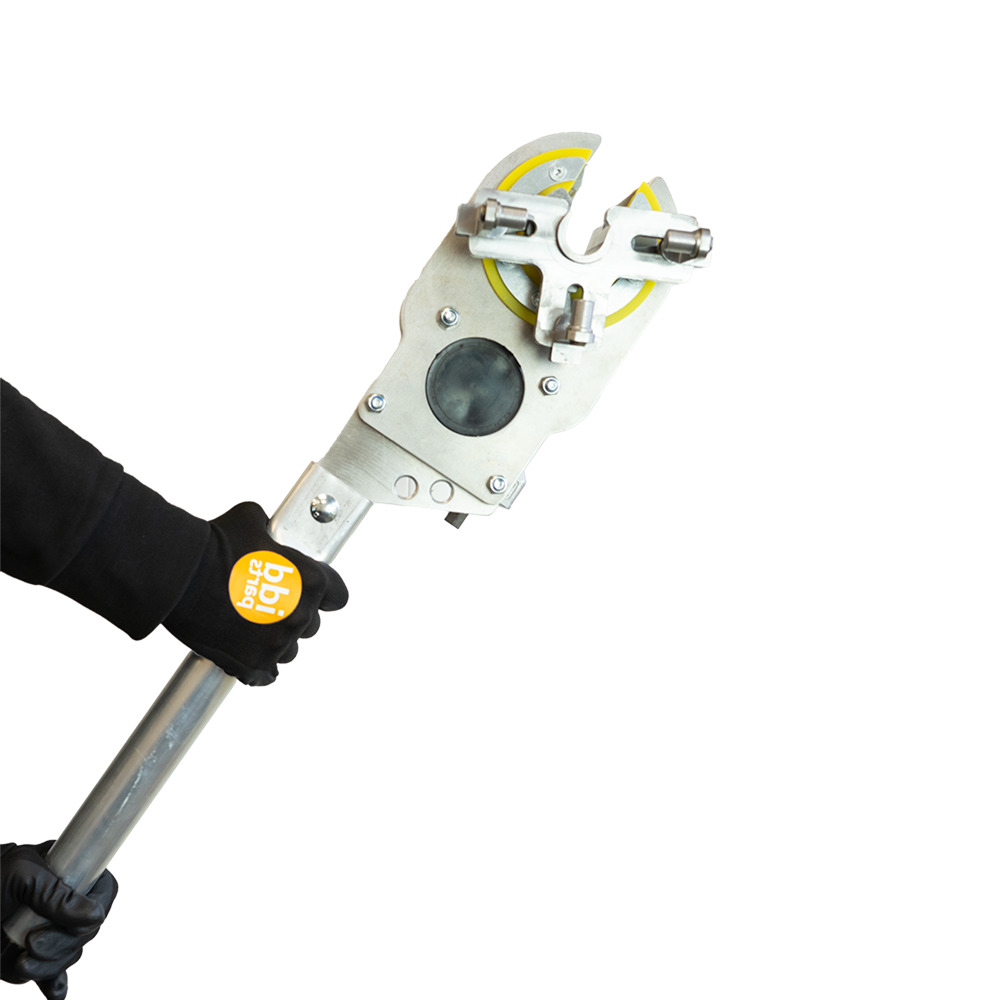

TorQtool Medium
Sale price$1,299.99

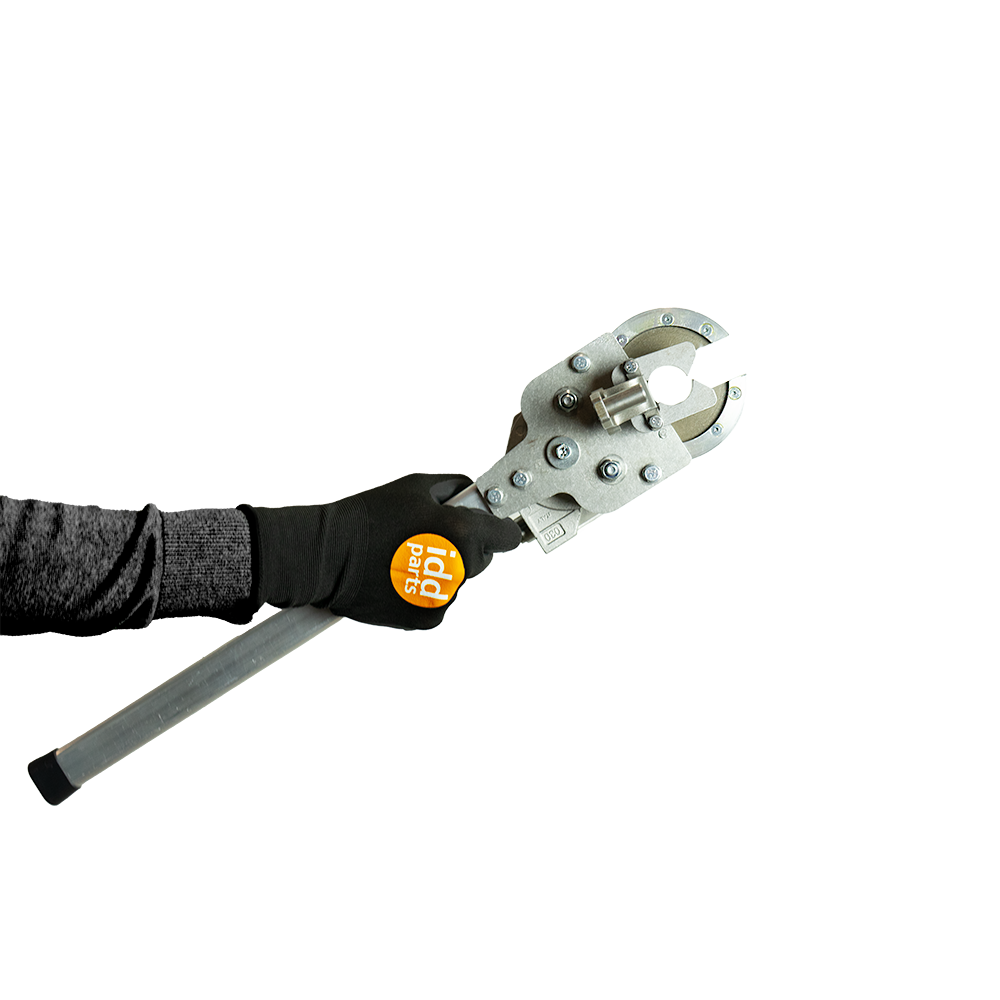

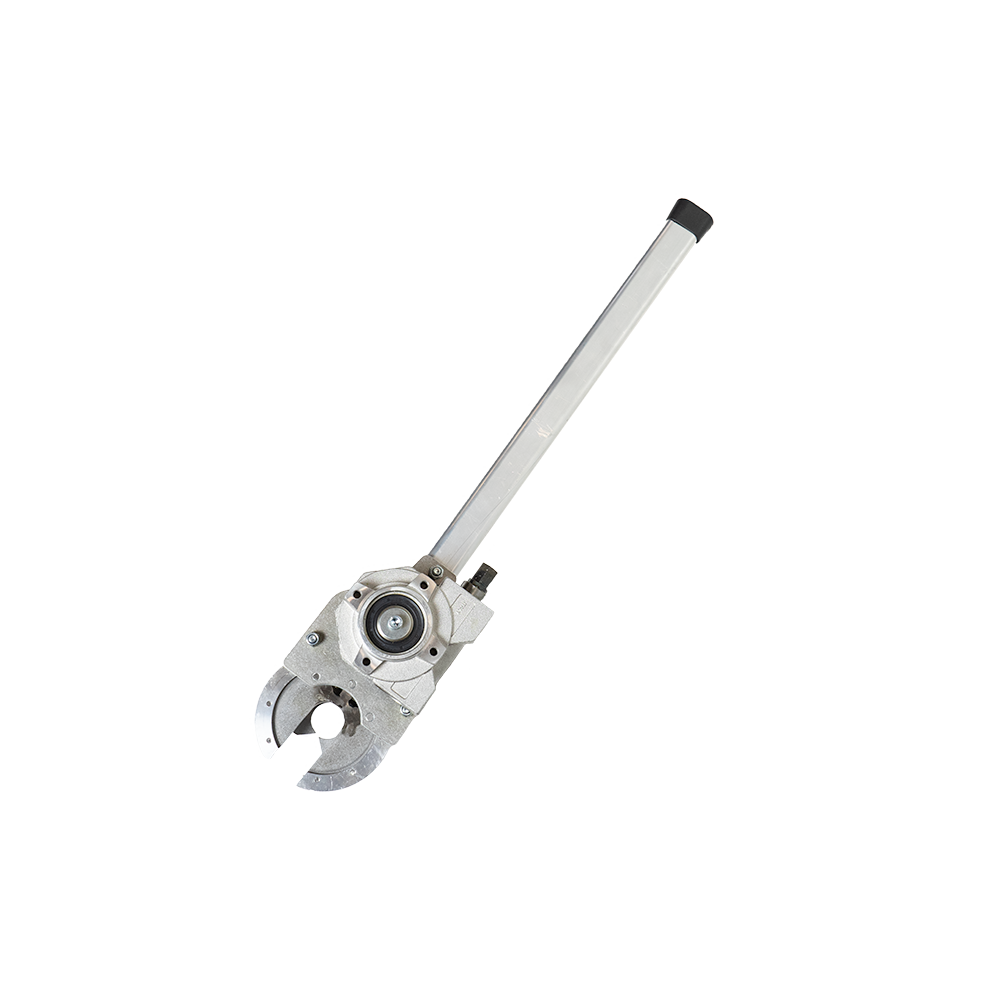

The TorQtool Mini
Attach your driver
Let your driver do the work
Steady grip
Full control and support during spring tensioning
Up to 50 N/m support
Powerful torque in a mini version
